What is it ?

pydevmgr_elt package has two modules :

pydevmgr_elt detailed in this documentation. Tools dedicated for ELT low level framework devices communication.
So far Motor, Drot, Adc, Shutter, Lamp are natively included with in addition the CcsSim and Time.
pydevmgr_elt_qt provides simple Widgets and guis for some ELT devices

Note

About versions Up to v0.5.x version pydevmgr_core, pydevmgr_ua and pydevmgr_elt has involved in a way that break backward compatibilities. From v0.5 I will try my best to avoid any majore backward compatibility break.

The deprecated version 0.2 of this module was included in a pydevmgr package. Now, the package is independant and using two other subpackages pydevmgr_core core engine for pydevmgr and pydevmgr_ua for generic OPC-UA com

In its current version 0.5.X, pydevmgr_elt is a separated module from pydevmgr_core and pydevmgr_ua. to communicate with the OPC-UA server.

If you do not know what is ELT software, this page is probably not for you.

In short pydevmgr_elt provides python objects to communicate directly to PLCs ELT devices via OPC-UA.

pydevmgr_elt is a Python module to be used as substitute of a real device manager running in a ELT-Software environment.

pydevmgr_elt is not intended to be ran under a ELT software devenv but instead to replace it for some use cases during AIT, test and lab activities. Basically for intermediate hardware test for which it does not make sens to setup a full ELT instrument workstation. It does basically replace the ELT software device manager python client when it is not available. It was designed to be used by non-software engineers in order to easily scrips sequences to integrate, tune and control hardwares.

pydevmgr_elt was mainly developed with the following goal in mind :

Building AIT and integration scripts when the ESO high level framework cannot be used or is not ready. Typicaly, for instance, when one have a test bench with some motors ans wants to do some scripts in order to characterise the hardware.
Build Engineering tools and small guis which can be run from any computer and can be edited by non-software engineers during hardware integration or lab experiments.
Prototyping and testing of special devices writing down the basic skeleton of special devices at early development phase in a friendly python environment before being translated to a real ELT-Framework compatible special device.
Use simple GUIs to drive standard or custom ESO devices from any computers. For instance, useful when electronics and PLC setup is done separately in an other institute but wants to script some motor movements.

pydevmgr_elt can use the YAML configuration files as defined by ESO (in ELT software version 2&3) to communicate with the PLC through OPC-UA. This allows to reuse those configuration files directly in the ESO fcf software. However the use of configuration file is not necessary.

Note that in future update of the ELT CII this configuration files will no longer be valid, I guess, but it should not be a problem as long as low level software is unchanged, pydevmgr_elt will still work, only the ability to copy past configuration files will be lost, not a big deal.

A tins, a test instrument, is included in the source package. It contains the yaml files and a running PLC project. The PLC project is not documented, see ESO FCS webpage for more information. The Example in the documents are given for the “tins” but are adaptable to any configurations.

In the following doc Examples, it is assumed that the tins is running on a OPC-UA server. One can easily adapt the Example from any working projects. Also it is assumed that the yml files of the tins are accessible through the $CFGPATH environment variable and they are edited to match the current hardware configuration (address, namespace, etc).

Install

Package

With pip:

> pip install pydevmgr_elt

To see the last version : https://pypi.org/project/pydevmgr_elt/#history

Or from the sources:

> git clone https://github.com/efisoft-elt/pydevmgr_elt.git
> cd pydevmgr_elt
> python setup.py install

If pydevmgr_elt_qt module is used, PyQt5 must be installed separately. This is done in purpose to make the install lighter.

> pip install pyqt5

Configuration Files

One can use yaml configuration file to configure device communication and control as it is done so far in v3 framework. But as we will see below this is not necessary.

The configuration file shall be in one of the directories defined in the “$CFGPATH” environment variable.

For the tins this could be :

> export CFGPATH=${CFGPATH}:/__path/to/your/src__/pydevmgr/tins/resources

A script is available to generate configuration file ready for edition. The script is smart enough to build an almost ready to use device manager.

Example of quick creation of device and manager config file in a shell :

> pydevmgr_dump Motor > motor1.yml
> pydevmgr_dump Motor > motor2.yml
> pydevmgr_dump Manager > manager.yml

pydevmgr_dump (or pydevmgr_dump.exe on window computer) accept also some options.

> export CFGPATH=some/directory
> mkdir $CFGPATH/fcs1
> cd $CFGPATH/fcs1

> pydevmgr_dump mapMotor > mapMotor.yml
> pydevmgr_dump mapLamp > mapLamp.yml
> pydevmgr_dump Motor motor1 --address opc.tcp://192.168.1.28:4840 --cfgdir "fcs1" > motor1.yml
> pydevmgr_dump Motor motor2 --address opc.tcp://192.168.1.28:4840 --cfgdir "fcs1" > motor2.yml
> pydevmgr_dump Lamp  lamp1  --address opc.tcp://192.168.1.28:4840 --cfgdir "fcs1" > lamp.yml
> pydevmgr_dump Manager fcs1 --cfgdir "fcs1/server" > fcs1.yml

Basic Usage

Vocabulary

Node
In pydevmgr a Node is an object dedicated for the get and set of one single data located in a distant location (OPC-UA, A data base, a serial com …). In pydevmgr_elt pydevmgr_elt.EltNode are dedicated for the communication through OPC-UA.
Rpc
Remote Procedure Call object. In pydevmgr_elt pydevmgr_elt.EltRpc is sending action request trhough OPC-UA
Interface
This is just a groupment of Nodes and/or Rpcs. Interface object can create nodes on-the-fly based on a default mapping or a custom map file. It hold a communication to the server and information to build Nodes. Most of the pydevmgr_elt.EltDevice objects have three interfaces: stat, cfg and rpcs which are grouping status nondes, config nodes and RPCs respectively.
Device
Device is the object representation of an hardware (or software) entity. It holds Interfaces, eventually nodes and methods to send actions. It can have also other Device instances (e.g. pydevmgr_elt.Adc has two pydevmgr_elt.Motor devices as child). The Device is responsible to create the communictaiotn protocal and pass it to children Interface, Node, and Rpc.
Manager
Is a collection of devices. See pydevmgr_elt.EltManager, the devices can be inside different PLCs (different OPC-UA servers).

Engine

The pydevmgr_core documentation is still missing but in short:

Each pydevmgr objects (see above) are made of a configuration and some runtime variables such as a ua-client object that goes from device to interface to nodes during creation.

The configuration dictate how the Object should behave. Instantiating two objects (with similar classes) with the same configuration shall result to exactly the same behavior.

Each object has a .new method. Its role is to build the object within the context of its parent. For instance, when creating an interface from a device the Ua communication client object is transferred from device to interface, similar when creating a node from the interface. Some other information as the OPC-UA node id is built at run time thanks to parent and config informations.

After creating an object (Manager, Device, Interface, Node, Rpc) it is not guaranty that changing its configuration instance will have the wanted effect. All configuration change must be done before creating the object.

Quick Start

A device can be opened from a yaml configuration file or created directly in python. In the last case one must just edit the critical parameters, at least the address and prefix and use the proper device Class, so far they are:

pydevmgr_elt.Motor to drive FB_MOTOR,
pydevmgr_elt.Adc to drive FB_MA_ADC
pydevmgr_elt.Drot to drive FB_MA_DROT
pydevmgr_elt.Lamp to drive FB_LAMP
pydevmgr_elt.Shutter to drive FB_SHUTTER
pydevmgr_elt.Piezo to drive FB_PIEZO

And

pydevmgr_elt.Time for FB_TIME
pydevmgr_elt.CcsSim for FB_CCS_SIM

Each device class has its own .Config (a class) and config (instance of .Config) attribute which basically contains what a yaml configuration file (as defined by ESO) contains plus other stuff used by pydevmgr, those are pydantic.BaseModel.

from pydevmgr_elt import Motor
motor1 = Motor("motor1", address='opc.tcp://192.168.1.13:4840', prefix='MAIN.Motor1')

Above the keyword arguments are part of the configuration of the device. We can decompose the creation as follow

from pydevmgr_elt import Motor
m1_config = Motor.Config(address='opc.tcp://192.168.1.13:4840', prefix='MAIN.Motor1')
motor1 = Motor("motor1", config=m1_config)

And then use it:

try:
   motor1.connect()
   print( "MOTOR1 POS", motor1.stat.pos_actual.get() )
finally:
   motor1.disconnect()

From version v0.5 Devices and Manager also understand context management: entering a width statement is connecting and exiting with is disconnecting the device or manager. The above example is equivalent to:

from pydevmgr_elt import Motor
with Motor("motor1", address='opc.tcp://192.168.1.13:4840', prefix='MAIN.Motor1') as motor1:
     print( "MOTOR1 POS", motor1.stat.pos_actual.get() )
     # do more stuff

To know the list of ‘children’ available on a device (or any pydevmgr object) one can use the .find method :

from pydevmgr_elt import Motor, BaseInterface, BaseNode

motor1 = Motor("motor1", address='opc.tcp://192.168.1.13:4840', prefix='MAIN.Motor1')
list(  motors.find( BaseNode, -1 ) )

The pydevmgr_elt.EltDevice.Config configuration structure is used by the pydevmgr_elt.EltDevice.configure() method which will send the proper configuration parameters to the PLC.

If you are using a configuration file the simplest way is to use the open_elt_device() function. It will open a device with the right class according to the type defined inside the configuration file :

from pydevmgr_elt import open_elt_device
motor1 = open_elt_device("tins/motor1.yml")

The path to configuration file (here tins/motor1.yml) must be relative to one of the path defined in the $CFGPATH environment variable.

An other use case, load a configuration and change some parameters:

from pydevmgr_elt import Motor
conf = Motor.Config.from_cfgfile('tins/motor1.yml', path="motor1")
conf.address = "opc.tcp://192.167.34.5:4840"
conf.initialisation.sequence = ['FIND_LHW']
conf.initialisation.FIND_LHW.value1 = 3.0
conf.initialisation.FIND_LHW.value2 = 1.0

motor1 = Motor('motor1', config=conf)
try:
   motor1.connect()
   motor1.configure() # send all configuration parameters to PLC
finally:
   motor1.disconnect()

ctrl_config configuration can be changed on a instance of a pydevmgr_elt.EltDevice :

motor1.config.ctrl_config.tout_init = 60000
motor1.config.ctrl_config.tout_move = 120000
motor1.configure() # send (or re-send) the full configuration to PLC

The last script will make what is in motor1.config.ctrl_config and what is configured in the PLC synchronized. However one can directly change the value inside the PLC. Follows the two ways to do it :

motor1.cfg.tout_init.set(60000)
motor1.cfg.tout_move.set(120000)

Or can be done in one single OPC-UA call:

from pydevmgr_elt import upload
updload( {motor1.cfg.tout_init:60000,  motor1.cfg.tout_move:120000} )

One can also open directly a device manager configuration file including several devices, e.i. a Manager:

from pydevmgr_elt import open_elt_manager, wait
tins = open_elt_manager("tins/tins.yml")
try:
   tins.connect()   # Connect all devices associated to the manager
   tins.configure() # configure all tins devices down to PLC
   tins.reset() # reset all devices
   wait( tins.init() ) # init all devices and wait
   wait( tins.enable() ) # enable all devices

   # etc ...
finally:
    tins.disconnect()

Or, better amd mode compact, since v0.5:

from pydevmgr_elt import open_elt_manager, wait
with open_elt_manager("tins/tins.yml") as tins:
   tins.configure() # configure all tins devices down to PLC
   tins.reset() # reset all devices
   wait( tins.init() ) # init all devices and wait
   wait( tins.enable() ) # enable all devices

   # etc ...

Note

See tins.yml file https://github.com/efisoft-elt/pydevmgr_elt/blob/main/tins/resources/tins/tins.yml as Example.

A manager (collection of several devices) can be also created without the need of a configuration file:

from pydevmgr_elt import UaManager, Motor

devices = {
   'motor1' :   Motor("motor1", address='opc.tcp://192.168.1.13:4840', prefix='MAIN.Motor1'),
   'motor2' :   Motor("motor2", address='opc.tcp://192.168.1.13:4840', prefix='MAIN.Motor2')
   }

mgr = EltManager('', devices=devices)

mgr.connect()

>>> mgr.motor1.stat.pos_actual.get()
4.0
>>> download( m.stat.pos_actual for m in mgr.devices if m.config.type == 'Motor')
[4.0, 3.4]

One important aspect of pydevmgr are Nodes (more bellow). Nodes in pydevmgr point to one single value (inside the PLC for the case of UaNode), they have the method pydevmgr_elt.EltNode.get(), pydevmgr_elt.EltNode.set() and the attribute .key which is a single identifier for the node in the context of the manager (e.i. python namespace).

We will see that pydevmgr_elt.EltNode.get(), .set() shall be rarely used, pydevmgr_core.download() and pydevmgr_core.upload() function shall be used instead because they allow to retrieve values in one call per server.

Nodes are grouped usually in “interfaces” like the .stat attribute containing status variables (readonly nodes) and .cfg for every writable nodes concerning the configuration.

Synchrone Execution & wait

pydevmgr is writen with regular function (not async function) but most of commands are asynchrone in the sens that PLC device does not need permanent connections to the OPC-UA to operate, it is always running. RPC methods return imediatly.

Therefore one should be careful not to execute methods one after the other without checking if the states are correct to execute the next method(s).

For instance :

# Do not Do That
>>> tins.adc1.init()
>>> tins.adc1.enable()

Will not work because enable is called right after init, before the hardware is finishing its initialisation.

Instead:

# Do
>>> wait( tins.adc1.init() )
>>> wait( tins.adc1.enable() )

What does return the init and enable is a Node to be checked to figure out if the requested action has been finished.

E.g: In the exemple above init is returning the node tins.adc1.stat.initialised

The pydevmgr_elt.wait() accept also a list of Node (or callable). By default it will wait that all input callables or node return True. But the logic can be changed.

from pydevmgr_elt import open_elt_manager, wait

with open_elt_manager("tins/tins.yml") as mgr:
    wait( [mgr.adc1.init(), mgr.drot1.init()] )
    wait( [mgr.adc1.enable(), mgr.dot1.enable()] )

All ‘check’ nodes are requested (in one call per server) at a configurable period (default is 0.1s, 10Hz).

Wait has a timeout option. If time exceed timeout (in seconds) an exception is raised.

An other keyword of wait is lag which add x seconds before starting to check nodes values. This can be useful to make sure that the requested action had time to start, for instance when moving motors:

wait( mgr.motor.move_abs(8,1.0) , lag=0.1 )

When the logic of the expecting “end of action” is too ambiguous, None is returned (None is ignored by wait). One Example is the move_vel method of a motor there is no end on this action.

Note, on the Example above start_track() is returning a node is_tracking.

The function wait() has a Waiter counterpart where the node list definition is separated from the call:

>>> waiter = Waiter([tins.motor1.stat.is_standstill, tins.motor2.stat.is_standstill], timeout=10)
# somewhereless:
>>> waiter.wait()

Note, one can also use the AllTrue node alias to combine node logic :

>>> from pydevmgr_core.nodes import AllTrue
>>> all_standstill = AllTrue(nodes=[tins.motor1.stat.is_standstill, tins.motor2.stat.is_standstill])
>>> wait( all_standstill )

A good practice would be also to add a node which check any errors and raise an exception in case of error, pydevmgr as this (in v>0.4):

wait (  [mgr.motor1.move_abs(4.5, 0.8), mgr.motor1.move_abs(4.5, 0.8),  mgr.motor1.stat.noerror_check,  mgr.motor2.stat.noerror_check ] )

The noerror_check is a pydevmgr_core.NodeAlias returning always True but raise an exception in case of device error (not RPC-Error, but the FB error). This allow to interrupt the wait with an exception raised.

Application and Data

pydevmgr_elt provides several ways to retrieve data from OPC-UA node. One can use the .get method of a node but when several nodes has to be retrieve in the same time the function pydevmgr_elt.downloader() and the pydevmgr_elt.Downloader allows to download nodes values in one call per server.

One have the choice to work with structure for a cleaner definition of used data or with dictionaries to work more dynamically. The idea behind this is to be able to program scripts without having to deal with device, nodes, etc at run time except when downloading data from PLC. Analysis function can just work with regular structure or dictionaries.

Dictionary based

>>> data = {}
>>> nodes = [tins.motor1.stat.pos_actual, tins.motor1.stat.pos_error,
             tins.motor1.stat.substate_txt,
             tins.motor2.stat.pos_actual, tins.motor2.stat.pos_error,
             tins.motor2.stat.substate_txt]
>>> download(nodes, data)
>>> data
{<UaNode key='motor1.pos_actual'>: 4.0,
 <UaNode key='motor1.pos_error'>: 0.0,
 <UaNode key='motor1.substate'>: 216,
 <UaNode key='motor2.pos_actual'>: 0.0,
 <UaNode key='motor2.pos_error'>: 0.0,
 <UaNode key='motor2.substate'>: 216,
 <NodeAlias key='motor2.substate_txt'>: 'OP_STANDSTILL',
 <NodeAlias key='motor1.substate_txt'>: 'OP_STANDSTILL'}

Note on the Example above substate_txt is a pydevmgr_core.NodeAlias it transforms the substate number (from the PLC) into a text. In consequence, the substate node is downloaded from PLC and added as well in the data dictionary.

Items of the data dictionary are node/value pairs. One can access values with e.g. data[tins.motor1.stat.pos_actual].

But a view of the data dictionary with string keys can be retrieved easily :

>>> from pydevmgr_elt import DataView
>>> m1_data = DataView(data, tins.motor1.stat)
>>> m1_data['pos_actual']
30.0
>>> wait( tins.motor1.move_abs(25.0, 100))
>>> download(nodes, data)
>>> m1_data['pos_actual']
25.0

So a DataView can be used by a function for instance :

def mot_info(pos_actual=0.0, pos_error=0.0, substate_txt=0, **extras):
     print(f"Substate is {substate_txt} and position is {pos_actual} with an error of {pos_error}")

>>> mot_info(**m1_data)
Substate is OP_STANDSTILL and position is 4.0 with an error of 0.0
>>> wait(tins.motor1.move_abs(30,100))
>>> download(nodes, data)
>>> mot_info(**m1_data)
Substate is OP_STANDSTILL and position is 30.0 with an error of 0.0

a DataView object is reflecting any change made in the root data except when a new node is added inside the root data dictionary.

Each manager, device, interface objects has a find method used to return children One can also build the full list of nodes :

from pydevmgr_core import BaseNode

data = {}
download( tins.find(BaseNode,-1), data )

In the example above find is looking for BaseNode object, the -1 argument is the depth, a negative depth is infinite.

Structure Base Model

This is most probably the cleanest way to make an application or script with pydevmgr. The Data Structure is declared front end with all the necessary attributes to work with. Making a less ambiguous and more robust way to work with values at run time than a dynamic dictionary. It is also more IDE friendly.

Data Structure are BaseModel of the excellent PYDANTIC module (it is like an extension of data class with data validation).

from pydevmgr_elt import NodeVar , DataLink, Motor
from pydantic import BaseModel

class SomeStatData(BaseModel):
    pos_actual: NodeVar[float] = 0.0
    pos_error:  NodeVar[float] = 0.0

motor1 = Motor( address="tpc.op://127.0.0.1:4841", prefix="MAIN.Motor1")
my_data =  SomeStatData()
dl = DataLink( motor1.stat, my_data)

Above, a call of dl.download() will trigger an update of my_data instance:

with motor1:
   dl.download()
   my_data.pos_actual
# 25.0

A full Data Model Class is available for each devices :

>>> mot_data = Motor.Data() # or  motor1.Data() in this exemple
>>> dl = DataLink(mgr.motor1, mot_data)
>>> dl.download()
>>> mot_data.stat
MotorStatData(state=2, substate=216, error_code=0, is_operational=True, is_not_operational=False, is_ready=False, is_not_ready=False, is_in_error=False, substate_txt='OP_STANDSTILL', substate_group='OK', state_txt='OP', state_group='OK', error_txt='OK', pos_target=27.0, pos_actual=0.0, pos_error=0.0, vel_actual=0.0, scale_factor=0.0001, local=False, backlash_step=2, mode=0, initialised=True, init_step=0, init_action=0, axis_ready=True, axis_enable=True, axis_inposition=False, axis_lock=False, axis_brake=False, axis_info_data1=0, axis_info_data2=0, signal_lstop=False, signal_lhw=False, signal_ref=False, signal_index=False, signal_uhw=False, signal_ustop=False, is_moving=False, is_standstill=True, pos_name='')

Similary this should also work

>>> mot_stat_data = Motor.Data.StatData() #  Motor.StatInterface.Data() gives the same results
>>> dl = DataLink(mgr.motor1.stat, mot_stat_data)
>>> dl.download()

Since version v0.4 the manager has a create_data_class method to create a Data class dynamicaly:

Data = tins.create_data_class( tins.children(BaseDevice) )
data = Data()
dl = DataLink( tins, data )

DataLink understand a hierarchic data structure:

from pydevmgr_elt import EltManager, Motor, NodeVar
from pydantic import BaseModel

class StatData(BaseModel):
     pos_actual: NodeVar[float] = 0.0
     pos_error:  NodeVar[float] = 0.0


class CfgData(BaseModel):
    backlash: NodeVar[float] = 0.0
    brake: NodeVar[bool] = False

class MotData(BaseModel):
    stat: StatDada = StatData()
    cfg: CfgData = CfgData()
    name: str = ""

class Data(BaseModel):
    motor1: MotData = MotData(name="motor1")
    motor2: MotData = MotData(name="motor2")

mgr = EltManager(devices={
        "motor1": Motor("motor1", address="opc.tcp://127.0.0.1:4840", prefix="MAIN.Motor1"),
        "motor2": Motor("motor2", address="opc.tcp://127.0.0.1:4840", prefix="MAIN.Motor2")
        })
data = Data()
dl =  DataLink(tins, data)

try:
   mgr.connect()
   dl.download()
   print( data.motor1.stat.pos_actual , data.motor1.stat.pos_actual)
finally:
    mgr.disconnect()

The example above works because the path on the manager and on the data structure are the same. I mean data.motor1.stat.pos_error <-> mgr.motor1.stat.pos_error

However one can specify other path in the data structure thanks to attribute of the Pydantic Field, we can use the node attribute to determine the node path inside a tuple or string with “.” separated names :

from pydantic import BaseModel, Field
from pydevmgr_elt import NodeVar , DataLink, EltManager, Motor, NodeVar

mgr = EltManager(devices={
        "motor1": Motor("motor1", address="opc.tcp://127.0.0.1:4840", prefix="MAIN.Motor1"),
        "motor2": Motor("motor2", address="opc.tcp://127.0.0.1:4840", prefix="MAIN.Motor2")
        })



class Data(BaseModel):
    m1_pos: NodeVar[float] = Field(0.0, node="motor1.stat.pos_actual"))
    m2_pos: NodeVar[float] = Field(0.0, node="motor2.stat.pos_actual"))

data = Data()
dl = DataLink( mgr, data )

try:
    mgr.connect()
    dl.download()
    print( data)
finally:
    mgr.disconnect()

Nodes and Node Alias

In addition to pydevmgr_elt.EltNode, pydevmgr provide alias node pydevmgr_core.NodeAlias. Their goal is to mimic a real server node by doing on-the-fly small computations.

When the alias node .get() method is called (or the node is added in a node list for download) the required nodes of the pydevmgr_core.NodeAlias will also be downloaded from server

For instance tins.motor1.stat.substate_txt is ‘getting’ the text representation of the substate. The substate integer is taken from server and converted into string on the fly.

This allows to make the device capabilities uniform and more clear, the applications can than just focus on its tasks by using a single and simple data dictionary. The end user does not have to know if a node is real or an alias.

For instance :

>>> download( [tins.motor1.stat.substate_txt, tins.motor2.stat.substate_txt] )
['OP_STANDSTILL', 'OP_STANDSTILL']

>>> data = {}
>>> download( [tins.motor1.stat.substate_txt, tins.motor2.stat.substate_txt], data )
>>> data
 {
 <UaNode key='motor1.substate'>: 216,
 <UaNode key='motor2.substate'>: 216,
 <NodeAlias key='motor1.substate_txt'>: 'OP_STANDSTILL',
 <NodeAlias key='motor2.substate_txt'>: 'OP_STANDSTILL'
 }

An other good Example of node alias is the pos_name included in pydevmgr_elt.Motor.StatInterface :

>>> data = {}
>>> download( [mgr.motor1.stat.pos_name], data )
>>> data
{<UaNode key='motor1.pos_actual'>: 30.0,
 <NodeAlias key='motor1.pos_name'>: 'ON'}

To generate a pydevmgr_core.NodeAlias one can use a pydevmgr_core.nodealias() decorator as such:

@nodealias('is_centered', nodes=[tins.motor1.stat.pos_actual, tins.motor2.stat.pos_actual])
def is_centered(m1_pos, m2_pos):
    return (m1_pos**2 + m2_pos**2) < 0.1**2

>>> is_centered.get()
True

Within a parent class one can use the NodeAlias.prop (for property) to create a NodeAlias instantiated in the context of its parent:

from pydevmgr_elt import NodeAlias1, Motor

class MyMotor(Motor):

   @NodeAlias1.prop( node="stat.pos_error")
   def is_in_target(self, pos_serro):
       return abs(pos_error)<0.03

You can also define your own NodeAlias Class easily with some configuration:

from pydevmgr_elt import Motor, NodeAlias1

class IsArrived(NodeAlias1,  sigma=(float, 0.03)):
     def fget(self, pos_error):
         return abs(pos_error)<self.config.sigma

And include it to your Motor class configuration so it can be configured from a configuration payload (a configuration file):

class MyMotor(Motor):
    class Config(Motor.Config):
        is_arrived : IsArrived.Config = IsArrived.Config( node="stat.pos_error", sigma=0.05 )


with MyMotor(address="opc.tcp://localos:4840", prefix="MAIN.Motor1") as m:
    print( m.is_arrived.get() )

Or if this is not supposed to be configurable one can include the property directly inside the class :

class MyMotor(Motor):
     is_arrived = IsArrived.prop( node="stat.pos_error", sigma=0.05 )

Some useful alias node are built-in like :

pydevmgr_core.nodes.DequeList which allow to fifo values of several nodes at each download. Useful for plot for instance.
pydevmgr_core.nodes.DateTime, pydevmgr_elt.nodes.UtcTime to deal with time stamps
pydevmgr_core.nodes.AllTrue, pydevmgr_core.nodes.AnyTrue, pydevmgr_core.nodes.AllFalse, pydevmgr_core.nodes.AnyFalse to combine the logic of several nodes.
pydevmgr_core.nodes.InsideInterval To check if a value is inside a given interval
pydevmgr_core.nodes.PosName return names for given position

GUIS

Note

pydevmgr_qt_elt is using PyQt5 which must be installed separately.

The GUI part of pydevmgr_elt is constantly in progress. Making a full complete widget toolkit is time consuming and overkill for the purpose of this package. Instead tools will be added on demand.

However one can quickly built a user interface for the purpose of pydevmgr_elt.

Warning

For pydevmgr_elt_qt, pyqt5 and pyqtgraph shall be installed

Device Widgets

Each devices have several widget kinds, serving different purposes:

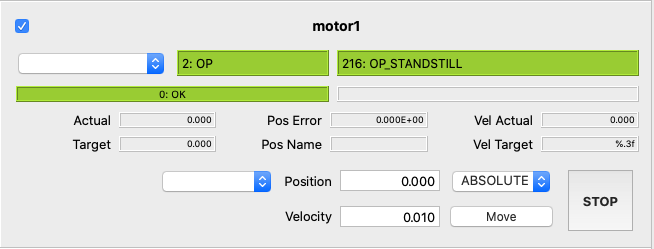

'line' is one compact line for basic status monitoring and basic command

'ctrl' a complete interface to control and monitor devices

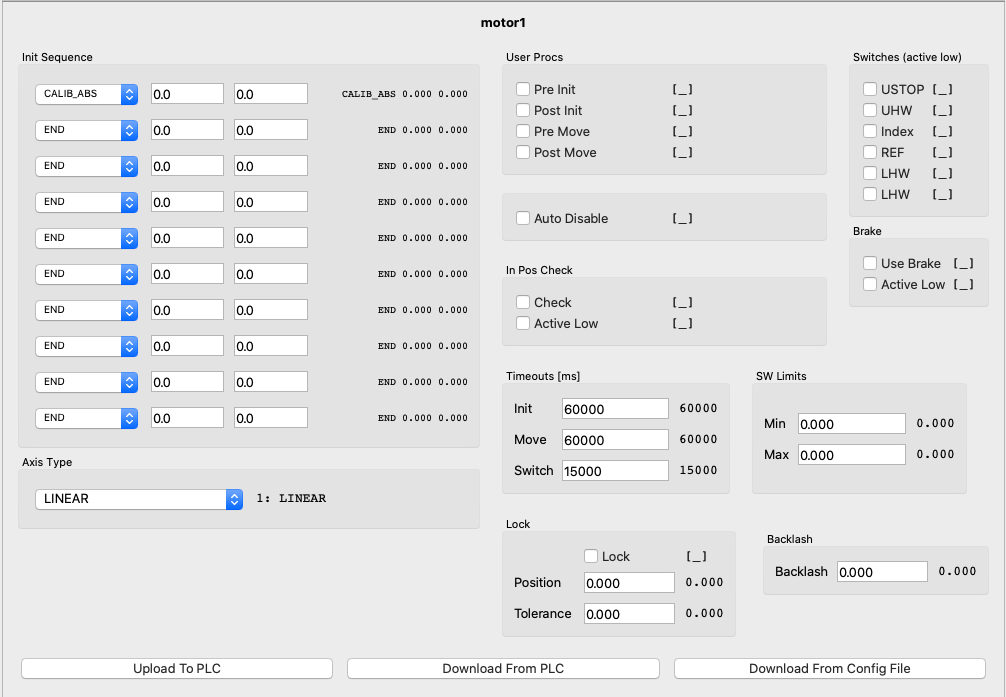

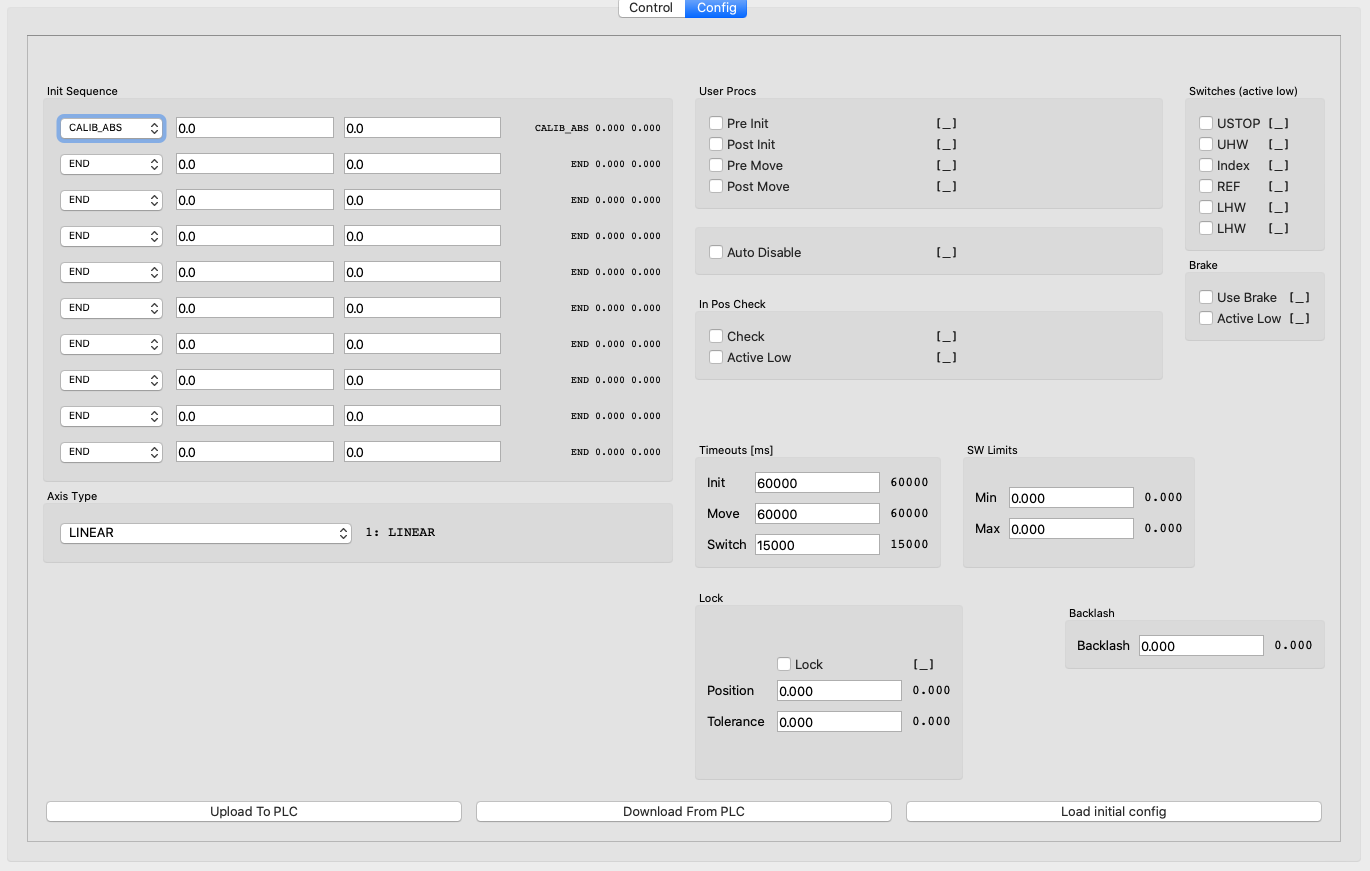

'cfg' a widget interface to configure the device. So far only for motor in v0.6.

To create a device widget one can use the pydevmgr_core_qt.get_widget_factory() or directly the proper class to build it and than connect it to a device and a pydevmgr_core.Downloader

from pydevmgr_elt_qt import MotorCtrl
from pydevmgr_elt import Motor, Downloader

motor1 = Motor('motor1', address='opc.tcp://192.168.1.28:4840', prefix='MAIN.Motor1', namespace=4)
downloader = Downloader()
motor_ctrl = MotorCtrl() # create an empty widget
motor_ctrl.connect(downloader, motor1) # connect the widget to the downloader and the motor1 instance

with motor1:
    downloader.download() # This will update the widget with the new values it can be called in a timer

The connect method above does :

add all the necessary nodes to the downloader. i.e., The ones used by the widget
add the widget pydevmgr_elt_qt.MotorCtrl.update() method to the downloader call back queue: widget is updated after each download
update the widget (e.g. position names in drop-down menus, etc) and link buttons to device methods.

The pydevmgr_elt_qt.MotorCtrl.disconnect() does the contrary, it free the nodes and callbacks from the downloader and remove buttons action, used when the widget is destroyed for instance.

Optionally the pydevmgr_elt_qt.MotorCtrl.disconnect() returns a object used to enable and disable the widget temporally :

c = motor_ctrl.connect(downloader, motor1)

c.diable() # diable the widget and suspend the nodes download associated to this widget
c.enable() # reconnect the widget.

Also one can have access to the data used by the widget in the c.data attribute.

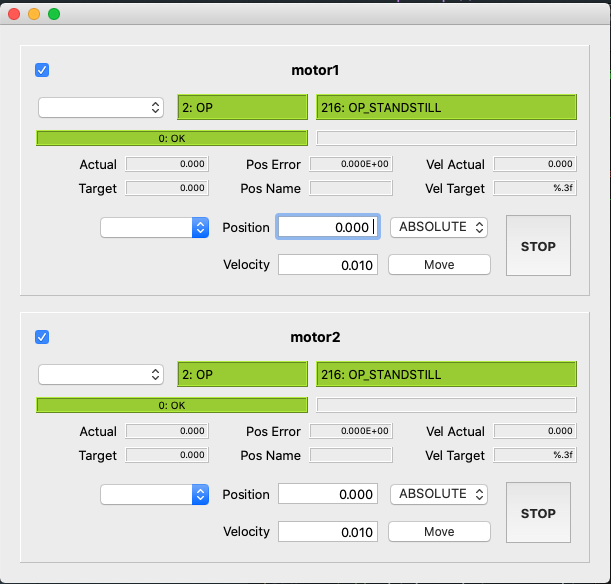

Here is a complete script to make a window GUI to control two motors :

from pydevmgr_elt_qt import get_widget_factory
from pydevmgr_elt import Motor, Downloader
from PyQt5 import QtWidgets, QtCore
from PyQt5.QtWidgets import QApplication, QMainWindow
import sys



def main_gui(motor1, motor2):
    downloader = Downloader()

    app = QApplication(sys.argv)
    win = QtWidgets.QWidget()
    layout =  QtWidgets.QVBoxLayout(win)

    motor1_wl = get_widget_factory("ctrl", motor1.config.type).build()
    motor1_wl.connect(downloader, motor1)
    layout.addWidget(motor1_wl.widget)

    motor2_wl = get_widget_factory("ctrl", motor2.config.type).build()
    motor2_wl.connect(downloader, motor2)
    layout.addWidget(motor2_wl.widget)

    win.show()
    timer = QtCore.QTimer()
    timer.timeout.connect(downloader.download)
    timer.start(100)

    sys.exit(app.exec_())

if __name__ == '__main__':

    motor1 = Motor('motor1', address='opc.tcp://192.168.1.11:4840', prefix='MAIN.Motor1')
    motor2 = Motor('motor2', address='opc.tcp://192.168.1.11:4840', prefix='MAIN.Motor2')

    with motor1, motor2:
        main_gui(motor1, motor2)

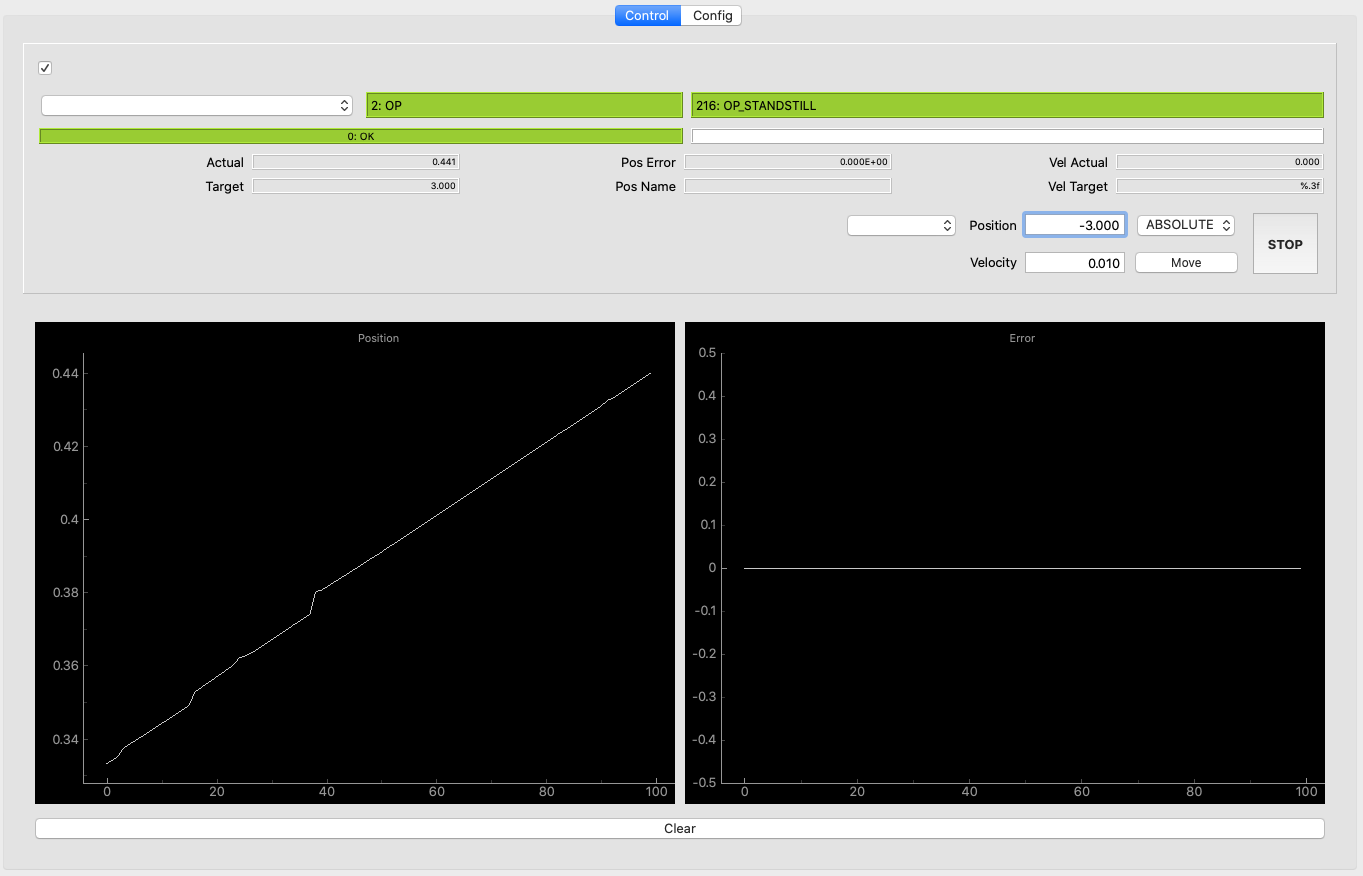

Motor GUI

A gui for motor control and config is avaiable from a shell command

> pydevmgr_motor_gui tins/motor1.yml

Manager GUI

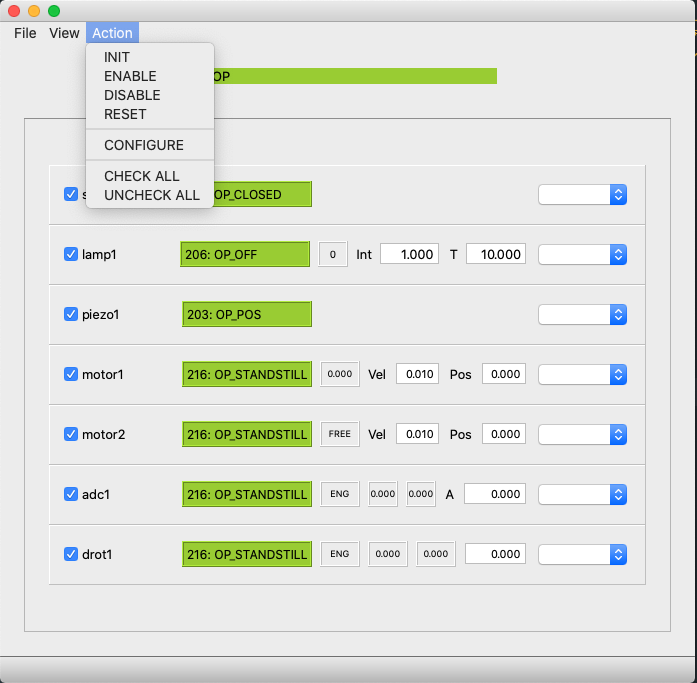

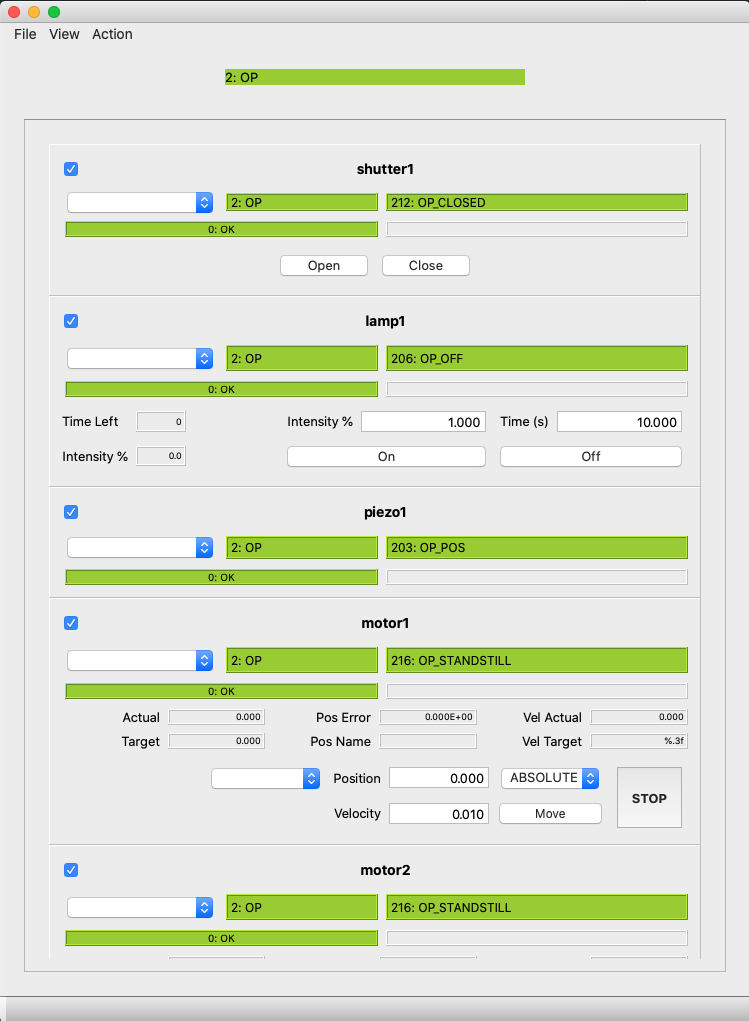

An automatic gui can be created easily with the pydevmgr_gui shell command :

> pydevmgr_gui tins/tins.yml

A definition of the gui “views” or layouts can be done in a yml file (with suffix _ui.yml) and a ui file. The yml define which device or type of device shall be included in layouts named in the ui file. For instance if the .ui file has a QVBoxLayout named ly_devices the manager suffixed _ui.yml file can declare what to add in this layout:

views:
    ctrl: # name of the "view"
        ui_file: simple_devices_frame.ui  # shall be in resources
        setup: # a list of rules defined inside a dictionary
            - device: "*"   # all devices
              layout: ly_devices
              widget_kind: "ctrl"

    motor1:
        size: [1200,500]
        setup:
            - device: motor1
              widget_kind: "ctrl"
            - device: motor1
              widget_kind: "cfg"

For the tins this open a gui with several views. The view are defined in the tins_ui.yml file.

The best way to understand how the layout of the widget is done is to look at the screenshot bellow and have a look at tins_extra.yml file which I think is self explanatory.

If no _ui.yml file was generated you will get a default gui which includes 2 views. One with all ‘line’ widget and the other one with ‘ctrl’ widgets

Auto generated Indexes

Base on pydevmgr_ua, pydevmgr_elt is defining nodes and methods of ELT standard devices

All the pydevmgr_core and pydevmgr_ua module members are also included in this package

Example:

from pydevmgr_elt import Motor, wait, download

motor = Motor( address="opc.tcp://myplc.local:4840", prefix="MAIN.Motor1")
try:
    motor.connect()
    wait( motor.move_abs(2.3, 0.5) )
    print( *download( motor.stat.pos_actual, motor.stat.pos_error))
finally:
    motor.disconnect()

class Adc(*args, fits_key: str = '', **kwargs)[source]

ELt Standard Adc device

class AXIS(value): AXIS enumeration has defined inside the PLC

Cfg: alias of AdcCfg

class MODE(value): The three ADC modes

Rpcs: alias of AdcRpcs

Stat: alias of AdcStat

get_configuration(exclude_unset=True, **kwargs) → Dict[EltNode, Any][source]

return a node/value pair dictionary ready to be uploaded

The node/value dictionary represent the device configuration. This is directly use by Device.configure() method.

Parameters:

exclude_unset (optional, bool) – Default is True. If True value that was left unset in the config will not be included in the configuration
**kwargs – name/value pairs pointing to self.cfg.<name> node This allow to change configuration on the fly without changing the config file.

Exemples

>>> upload( {**motor1.get_configuration(), **motor2.get_configuration()} )

init() → EltNode[source]

init the device

Raises:: RpcError – if OPC-UA Rpc method returns an error code
Returns:: the NodeAlias .stat.is_ready to check if the init is finished
Return type:: is_ready

Example

wait( device.init() )

move_abs(axis, pos, vel) → EltNode[source]

Move one or all motor to an absolute position

Parameters:

axis (int) – 0 for all motors 1 for axis 1 and 2 for axis 2. See .AXIS enumerator attribute
pos (float) – target absolute position
vel (float) – target velocity

Returns:

the NodeAlias self.stat.is_standstill to check if the device is in standstill

Return type:

is_standstill (Node)

Example

wait( adc.move_abs( adc.AXIS.AXIS1, 34.5, 4.0 ) )

move_angle(angle=0.0) → EltNode[source]

Move to angle (OFF mode)

Parameters:

angle (float, optional) – target angle default = 0.0

Returns:

the NodeAlias .stat.is_standstill to check if the device is: in standstill. (e.i. movement finished)

Return type:

is_standstill (Node)

Example

wait( adc.move_angle( 34.3 ) )

move_rel(axis, pos, vel) → EltNode[source]

Move one or all motor to an relative position

Parameters:

axis (int) – 0 for all motors 1 for axis 1 and 2 for axis 2
pos (float) – target relative position
vel (float) – target velocity

Returns:

the NodeAlias .stat.is_standstill to check if the device is in standstill

Return type:

is_standstill (Node)

Example

wait( adc.move_rel( adc.AXIS.AXIS1, 8.5, 4.0 ) )

move_vel(axis, vel) → EltNode[source]

Move one or all motor in velocity

Parameters:

axis (int) – 0 for all motors 1 for axis 1 and 2 for axis 2
vel (float) – target velocity

Returns:

None

start_track(angle=0.0) → EltNode[source]

Start tracking (AUTO mode)

Parameters:: angle (float, optional) – target angle default = 0.0
Returns:: the NodeAlias .stat.is_tracking to check if the device is in tracking
Return type:: is_tracking

stop() → None[source]: Stop all ADC motions

class CcsSim(*args, fits_key: str = '', **kwargs)[source]

ELt Standard CcsSim device as in IFW v3.0 (this may change)

Cfg: alias of CcsSimCfg

Rpcs: alias of CcsSimRpcs

Stat: alias of CcsSimStat

disable() → None[source]: Do nothing for CcsSim (here for compatibility)

enable() → None[source]: Do Nothing for CcsSim (here for compatibility)

get_configuration(exclude_unset=True, **kwargs) → dict[source]

return a node/value pair dictionary ready to be uploaded

The node/value dictionary represent the device configuration. This is directly use by Device.configure() method.

Parameters:

exclude_unset (optional, bool) – Default is True. If True value that was left unset in the config will not be included in the configuration
**kwargs – name/value pairs pointing to self.cfg.<name> node This allow to change configuration on the fly without changing the config file.

Exemples

>>> upload( {**motor1.get_configuration(), **motor2.get_configuration()} )

init() → None[source]: Do Nothing for CcsSim (here for compatibility)

reset() → None[source]: Do nothing for CcsSim (here for compatibility)

set_coordinates(ra: float, dec: float, equinox: float = 2000.0) → None[source]

Set coordinates in CcsSim

Parameters:

ra (float) – hhmmss.xxx
dec (float) – ddmmss.xxx
equinox (float, optional) – Default is 2000

set_environment(temperature: Optional[float] = None, pressure: Optional[float] = None, humidity: Optional[float] = None, lapserate: Optional[float] = None, wavelength: Optional[float] = None, dut: Optional[float] = None)[source]

set environmnent data to the Ccs Simulator

Each settings arguments are potionals: temperature, pressure, humidity, lapserate, wavelength, dut.

They are taken into account if not None

class DataLink(input: Any, model: BaseModel, strick_match: bool = True)[source]

Link an object containing nodes, to a pydantic.BaseModel

Parameters:

input (Any) – Any object with attributes, expecting that the input contains some BaseNode attributes in its hierarchy
model (pydantic.BaseModel) – a data model. Is expecting that the data model structure contains NodeVar type hint signature.

Example

In the following, it is assumed that the motor1 object has a .stat attribute and the .stat object have nodes as pos_actual, vel_actual, etc …

from pydevmgr_core import NodeVar, DataLink
from pydevmgr_core.nodes import UtcTime
from pydantic import BaseModel, Field

class MotorStatData(BaseModel):
    # the following nodes will be retrieve from the input object, the name here is the
    # the attribute of the input object
    pos_actual:  NodeVar[float] = 0.0
    vel_actual:  NodeVar[float] = 0.0



    # also the input object attribute pointing to a node can be changed
    # with the no de keyword in Field (from pydantic import Field)
    pos: NodeVar[float] = Field(0.0, node='pos_actual')
    vel: NodeVar[float] = Field(0.0, node='vel_actual')


class MotorData(BaseModel):
    num  : int =1 # other data which are not node related

    # Add the stat Data Model
    stat : MotorStatData = MotorStatData()

    # This node is standalone, not linked to input object,
    # it must be specified in Field with the node keyword
    utc:         NodeVar[str]   = Field('1950-01-01T00:00:00.00000', node=UtcTime('utc'))


>>> data = MotorData()
>>> data.stat.pos
0.0
>>> link = DataLink( motor1, data )
>>> link.download() # download node values inside data from tins.motor1
>>> data.stat.pos
4.566
>>> data.utc
'2020-12-17T10:05:15.831726'

DataLink can be added to a Downloader, at init or with the Dwonloader.add_datalink() method

from pydevmgr_core import Downloader

>>> downloader = Downloader(link)
>>> downloader.download()

# Or

>>> connection = downloader.new_connection()
>>> connection.add_datalink(link)

download() → None[source]: download Nodes from servers and update the data

download_from_nodes(nodevals: Dict[BaseNode, Any]) → None[source]

Update the data from a dictionary of node/value pair

If a node in the dictionary is currently not part of the data model link it is ignored silently

reset()[source]: All linked nodes with a reset method will be reseted

upload() → None[source]: upload data value (the one linked to a node) to the server

class Downloader(nodes_or_datalink: Optional[Union[Iterable, BaseDataLink]] = None, data: Optional[Dict] = None, callback: Optional[Callable] = None, trigger: Optional[Callable] = None)[source]

object dedicated to download nodes, feed data and run some callback

An application can request nodes to be downloaded and callback to be executed after each success download or each failures.

Parameters:

nodes_or_datalink (iterable of node or DataLink) –
- An initial, always downloaded, list of nodes
- Or a DataLink object
data (dict, optional) – A dictionary to store the data. If not given, one is created and accessible through the .data attribute. This data is made of node/value pairs, the .get_data_view gives however a dictionary like object with string/value pairs. Each time a new node is added to the downloader it will be added to the data as data[node] = None. None will be replaced after the next download.
callback (callable, optional) – one single function with signature f(), if given always called after successful download.
trigger (callable, optional) – a function taking no argument and should return True or False If given the “download” method download nodes only if f() return True. Can be used if the download object is running in a thread for instance.

Example

A dumy exemple, replace the print_pos by a GUI interface for instance:

def print_pos(m, data):
    "An application"
    print("Position :",  data[m.stat.pos_actual], data[m.stat.pos_error] )

>>> tins = open_manager('tins/tins.yml')
>>> tins.connect()
>>> downloader = Downloader()
>>> token = downloader.new_token()
>>> downloader.add_node(token, tins.motor1.stat.pos_actual, tins.motor1.stat.pos_error )
>>> downloader.add_callback(token, lambda : print_pos(tins.motor1, downloader.data))
>>> downloader.download()
Position : 3.45 0.003
>>> downloader.data
{
<UaNode key='motor1.pos_error'>: 0.003,
<UaNode key='motor1.pos_actual'>:  3.45
}

>>> downloader.disconnect(token) # disconnect the print_pos function and remove
                                 # the pos_actual, pos_error node from the list of nodes
                                 # to download (except if an other connection use it)

Same result can be obtained with this exemple:

def print_pos(data):
    "An application"
    print("Position :",  data['pos_actual'], data['pos_error'] )

>>> nodes_data = {tins.motor1.stat.pos_actual: -9.99 , tins.motor1.stat.pos_error: -9.99}
>>> m1_data = DataView(nodes_data, tins.motor1.stat)
>>> downloader = Downloader(nodes_data, callback=lambda: print_pos(m1_data))
>>> downloader.download()
Position : 3.45 0.003
>>> m1_data
{'pos_error': 0.003, 'pos_actual': 3.45}

Connection: alias of DownloaderConnection

exception StopDownloader

add_callback(token: tuple, *callbacks) → None[source]

Register callbacks to be executed after each download

The callback must have the signature f(), no arguments.

Parameters:

token – a Token returned by Downloader.new_connection()
*callbacks – callbacks to be added to the queue of callbacks, associated to the app

add_datalink(token: tuple, *datalinks) → None[source]

Register a new datalink

Parameters:

token – a Token returned by Downloader.new_token() add_datalink(...,dl1, dl2) can also be used, in this case they will be added to the main pool of datalinks and cannot be remove from the downloader
*datalinks – DataLink to be added to the download queue, associated to the token

add_failure_callback(token: tuple, *callbacks) → None[source]

Add one or several callbacks to be executed when a download failed

When ever occur a failure (Exception during download) f(e) is called with e the exception. If a download is successfull after a failure f(None) is called one time only.

Parameters:

token – a Token returned by Downloader.new_token()
*callbacks – callbacks to be added to the queue of failure callbacks, associated to the app

add_node(token: tuple, *nodes) → None[source]

Register node to be downloaded for an iddentified app

Parameters:

token – a Token returned by Downloader.new_token() add_node(...,node1, node2) can also be used, in this case nodes will be added to the main pool of nodes and cannot be removed from the downloader
*nodes – nodes to be added to the download queue, associated to the app

add_nodes(token: tuple, nodes: Iterable) → None[source]

Register nodes to be downloaded for an iddentified app

Parameters:

token – a Token returned by Downloader.new_token() add_node(...,node1, node2) can also be used, in this case nodes will be added to the main pool of nodes and cannot be removed from the downloader
nodes (Iterable, dict) – nodes to be added to the download queue, associated to the app If a dictionary of node/value pairs, they are added to the downloader data.

clean_data() → None[source]

Remove to the .data dictionary all keys/value pairs corresponding to nodes not in the downloader queue

Returns:: The number of node/value pair removed
Return type:: n (int)

disconnect(token: tuple) → None[source]

Disconnect the iddentified connection

All the nodes used by the connection (and not by other connected app) will be removed from the download queue of nodes. Also all callback associated with this connection will be removed from the downloader

Note that the discnnected nodes will stay inside the downloader data but will not be updated

Parameters:: token – a Token returned by Downloader.new_token()

download() → None[source]

Execute a download

Each nodes on the queue are fetched and the .data dictionary is updated from new values.

If the Downloader has a trigger method and the trigger return false, nothing is done

get_data_view(prefix: str = '') → DataView[source]

Return a view of the data in a dictionary where keys are string keys extracted from nodes

If prefix is given the return object will be limited to items with key matching the prefix.

Note: the data view reflect any change made on the rootdata except when new nodes (mathing the prefix) are added. So all necessary nodes shall be added to the downloader before requesting a DataView.

Parameters:: prefix (str, optional) – limit the data viewer to a given prefix. prefix can also be an object with the key attribute like a BaseDevice, BaseNode etc …

Example

> downloader = Downloader([mgr.motor1.substate, mgr.motor1.pos_actual, mgr.motor2.substate])
> downloader.download()
> m1_data = downloader.get_data_view(mgr.motor1.key)
> m1_data['pos_actual']
3.9898

> m1_data = downloader.get_data_view(mgr.motor1)
# is equivalent to
> m1_data = DataView(downloader.data, mgr.motor1)

new_connection()[source]

Return a DownloaderConnection object

The DownloaderConnection object contain a token and the downloader in order to have a standalone object to handle the add/remove of queue nodes and callbacks

new_token() → tuple[source]

add a new app connection token

Returns:

A token, the token and type itself is not relevant, it is just a unique ID to be used in: add_node, add_callback, add_failure_callback, and disconnect methods

Note

new_connection() method return object containing a pair of token and downloader and all: methods necessary to add_nodes, add_callbacks, etc …

remove_callback(token: tuple, *callbacks) → None[source]

Remove callbacks

If the callback is not in the queueu nothing is done or raised

Parameters:

token – a Token returned by Downloader.new_token()
*callbacks – callbacks to be removed

remove_datalink(token: tuple, *datalinks) → None[source]

Remove a datalink from a established connection

If the datalink is not in the queueu nothing is done or raised

Parameters:

token – a Token returned by Downloader.new_token()
*datalinks – DataLink objects to be removed

remove_failure_callback(token: tuple, *callbacks) → None[source]

remove one or several failure callbacks

If the callback is not in the queue nothing is done or raised

Parameters:

token – a Token returned by Downloader.new_token()
*callbacks – callbacks to be removed

remove_node(token: tuple, *nodes) → None[source]

Remove node from the download queue

if the node is not in the queueu nothing is done or raised

Note that the node will stay inside the downloader data but will not be updated

Parameters:

token – a Token returned by Downloader.new_token()
*nodes – nodes to be removed

reset() → None[source]: All nodes of the downloader with a reset method will be reseted

run(period: float = 1.0, stop_signal: ~typing.Callable = <function Downloader.<lambda>>, sleepfunc: ~typing.Callable = <built-in function sleep>) → None[source]

run the download indefinitely or when stop_signal return True

Parameters:

period (float, optional) – period between downloads in second
stop_signal (callable, optional) – a function returning True to stop the loop or False to continue

runner(period: float = 1.0, stop_signal: ~typing.Callable = <function Downloader.<lambda>>, sleepfunc: ~typing.Callable = <built-in function sleep>) → Callable[source]

Create a function to run the download in a loop

Usefull to define a Thread for instance

Parameters:

period (float, optional) – period between downloads in second
stop_signal (callable, optional) – a function returning True to stop the loop or False to continue

Example

>>> downloader = Downloader([mgr.motor1.substate, mgr.motor1.pos_actual])
>>> t = Thread( target = downloader.runner(period=0.1) )
>>> t.start()

class Drot(*args, fits_key: str = '', **kwargs)[source]

ELt Standard Drot device

Cfg: alias of DrotCfg

class MODE(value): An enumeration.

Rpcs: alias of DrotRpcs

Stat: alias of DrotStat

init()[source]

init the device

Raises:: RpcError – if OPC-UA Rpc method returns an error code
Returns:: the NodeAlias .stat.is_ready to check if the init is finished
Return type:: is_ready

Example

wait( device.init() )

move_angle(angle=0.0) → EltNode[source]

Move drot to angle in STAT mode

Parameters:

angle (float, optional) – target angle default = 0.0

Returns:

the NodeAlias .stat.is_standstill to check if the device is: in standstill. (e.i. movement finished)

Return type:

is_standstill

Example

wait( drot.move_angle( 34.3 ) )

start_track(mode, angle=0.0) → EltNode[source]

Start drot tracking

Parameters:

mode (int, str) – tracking mode. Int constant defined in Drot.MODE.SKY, Drot.MODE.ELEV str ‘SKY’ or ‘ELEV’ is also accepted
angle (float) – paSky or paPupil depending of the mode

Returns:

the NodeAlias .stat.is_tracking to check if the device is in tracking

Return type:

is_tracking

class EltManager(key: Optional[str] = None, config: Optional[Union[ManagerConfig, ManagerIOConfig, Dict]] = None, devices: Optional[Union[Dict[str, Config], Dict[str, EltDevice]]] = None, **kwargs)[source]

UaManager object, handling several devices

Note

Most likely the UaManager will be initialized by UaManager.from_cfgfile() or its alias open_elt_manager()

Parameters:

key (str, optional) – the key (prefix of all devices) of the manager If None key is the ‘server_id’ defined inside the config dictionary or a random one is generated
config (dict, ManagerConfig, ManagerIOConfig) – tion for the manager
devices (dict, optional) –
- name/ UaDevice pairs
  - or name/ DeviceConfig pairs
Used when the manager is built without configuration file

Exemples:

from pydevmgr_elt import EltManager, Motor, Lamp

devices = dict(
    motor = Motor('motor', address="opc.tcp://localhost:4840", prefix="MAIN.Motor1" ),
    lamp = Lamp( 'lamp', address="opc.tcp://localhost:4840", prefix="MAIN.Lamp1"  )
)
mgr = EltManager('mgr',  devices )

mgr.connect()
mgr.motor.stat.pos_actual.get()
# etc ...

Or one can subclass the EltManager to configure the device layout configuration in the class

from pydevmgr_elt import EltManager, Motor, Lamp, Defaults, wait

class AitBench(EltManager):
   class Config( EltManager.Config, extra="forbid" ):
       motor: Defaults[Motor.Config] = Motor.Config( address="opc.tcp://myplc.local:4840", prefix="MAIN.Motor1" )
       lamp: Defaults[Lamp.Config] = Lamp.Config( address="opc.tcp://myplc.local:4840", prefix="MAIN.Lamp1" )
       server =  EltManager.Config.Server( devices=['motor', 'lamp'] )



mgr = AitBench('mgr')
mgr.connect()
wait( mgr.init() )
# etc ...

Above the devices list is the list of device names used in any function of mgr (like connect, init, reset etc…). For compatibility with ESO config file this device` parameter is inside a server structure (pydandic model). This is not convenient but you can do whatever you want in your Config file and add the devices property of your class.

from pydevmgr_elt import EltManager, Motor, Lamp, CcsSim, Defaults, wait, BaseManager
from typing import List
class AitBench(EltManager):
   class Config( BaseManager.Config, extra="forbid" ):
       motor: Defaults[Motor.Config] = Motor.Config( address="opc.tcp://myplc.local:4840", prefix="MAIN.Motor1" )
       lamp: Defaults[Lamp.Config] = Lamp.Config( address="opc.tcp://myplc.local:4840", prefix="MAIN.Lamp1" )
       ccs: CcsSim.Config = CcsSim.Config(address="opc.tcp://myplc.local:4840", prefix="MAIN.ccs_sim")
       devices: List[str] = ['lamp', 'motor']

   @property
   def devices(self):
       return [getattr(self, name) for name in self.config.devices]

mgr = AitBench('mgr')
mgr.devices

Note, above I have added a ccs to show that even if it is not part of the devices list (used in connect, init, reset, enable, disable function) the ccs is still part of the manager :

mgr.ccs.set_coordinates( 044534.0, -244567.0, 2000 )

Config: alias of Config

StatInterface: alias of ManagerStatInterface

active_devices()[source]: return an iterator on active, aka, not-ignored devices

configure() → None[source]

Configure all devices

devices with a ignored flag will be ignored

configure_all() → None[source]: Deprecated use configure instead

connect_all() → None[source]: Deprecated use connect instead

device_names() → list[source]: return a list of child device names

disable() → NodeAlias[source]

Disable all child devices

devices with a ignored flag will be ignored

Returns:

a NodeAlias which result in True when all devices are disabled: can be used in the pydevmgr.wait() function

Return type:

all_disabled

Example

wait( mgr.disable_all() )

disable_all() → NodeAlias[source]: Deprecated use disable instead

disconnect_all() → None[source]: Deprecated use disconnect instead

enable() → NodeAlias[source]

Enable all child devices

devices with a ignored flag will be ignored

Returns:

a NodeAlias which result in True when all devices are enabled: can be used in the pydevmgr.wait() function

Return type:

all_enabled

Example

wait( mgr.enable() )

enable_all() → NodeAlias[source]: Deprecated use enable instead

classmethod from_cfgfile(cfgfile, path='', prefix: str = '', key=None)[source]

Create the object from a configuration file

Parameters:

cfgfile (str) – Path to the config file, shall be relative to one of the $CFGPATH or absolute path
key (str, Optional) – key of the device, if not given this is built from the path suffix and the optional prefix
path (None, str, False) – for instance ‘a.b.c’ will loock at cfg[‘a’][‘b’][‘c’] from the loaded config file If “” the config file define the device configuration from its root If None the first item of the config file is taken. Note that the path can be defined directly inside the cfgfile file name in the form path/to/myconfig.yml[a.b.c] see load_config()
prefix (str, optional) – add a prefix to the path name to build the device key. It is used only if key is None otherwhise ignored

get_device(name: str) → EltDevice[source]: get device matching the name Raise ValueError if not found :param name: device name :type name: str

ignore_all()[source]: set ignored flag to True for all devices

init() → NodeAlias[source]

Init all child devices

devices with a ignored flag will be ignored

Returns:

a NodeAlias which result in True when all devices are initialised: can be used in the pydevmgr.wait() function

Return type:

all_initialised

Example

wait( mgr.init() )

init_all() → NodeAlias[source]: Deprecated use init instead

property key: str

reset() → NodeAlias[source]

Reset all child devices

devices with a ignored flag will be ignored

Returns:

a NodeAlias which result in True when all devices are reseted: can be used in the pydevmgr.wait() function

Return type:

all_reseted

Example

wait( mgr.reset() )

reset_all() → NodeAlias[source]: Deprecated use reset instead

unignore_all()[source]: set ignored flag to False for all devices

class EltRpc(key: Optional[str] = None, config: Optional[UaRpcConfig] = None, *, com: Optional[Union[dict, UaCom, Client]] = None, **kwargs)[source]

class RPC_ERROR(value): An enumeration.

get_error_txt(rpc_error: int) → str[source]

get a text description of the rpc_error code

See the enumerator RPC_ERROR attribute

Parameters:: rpc_error (int) – rpc error code

class GROUP[source]

Constants holder GROUP are used to classify state and substates

This class is not intended to be instancied but only to hold constants

An application if for widget styling for instance : one style per group

class Lamp(*args, fits_key: str = '', **kwargs)[source]

ELt Standard Lamp device

Cfg: alias of LampCfg

Rpcs: alias of LampRpcs

Stat: alias of LampStat

switch_off() → EltNode[source]: switch off the lamp

switch_on(intensity, time_limit) → EltNode[source]

switch on the lamp

Parameters:

intensity (float) – in %
time_limit (float) – number of second the lamp will stay on

class Motor(*args, fits_key: str = '', **kwargs)[source]

ELt Standard Motor device

Cfg: alias of MotorCfg

Rpcs: alias of MotorRpcs

Stat: alias of MotorStat

get_configuration(exclude_unset=True, **kwargs) → Dict[EltNode, Any][source]

return a node/value pair dictionary ready to be uploaded

The node/value dictionary represent the device configuration.

Parameters:: **kwargs – name/value pairs pointing to cfg.name node This allow to change configuration on the fly without changing the config file.

get_name_of_pos(pos_actual: float) → str[source]

Retrun the name of a position from a position as input or ‘’

Example

m.get_name_of( m.stat.pos_actual.get() )

get_pos_target_of_name(name: str) → float[source]: return the configured target position of a given pos name or raise error

is_near(pos: float, tol: float, data: Optional[Dict[str, Any]] = None) → bool[source]: -> True when abs(pos_actual-pos)<tol

move_abs(absPos, vel=None) → EltNode[source]

move motor to an absolute position

self.move_abs(pos, vel) <-> self.rpc.rpcMoveAbs(pos, vel)

Parameters:

absPos (float) – absolute position
vel (float) – target velocity for the movement

move_name(name, vel=None) → EltNode[source]

move motor to a named position

Parameters:

name (str) – named position
vel (float) – target velocity for the movement

move_rel(relPos, vel=None) → EltNode[source]

Move motor relative position

Parameters:

relPos (float) – relative position
vel (float) – target velocity for the movement

move_vel(vel) → None[source]

Move motor in velocity mode

Parameters:: vel (float) – target velocity

property posnames: str

(pos, tol) dictionary

Type:: configured position names in a name

stop() → None[source]: Stop the motor

class NodeAlias(key: Optional[str] = None, nodes: Optional[Union[BaseNode, List[BaseNode]]] = None, config: Optional[Config] = None, **kwargs)[source]

NodeAlias mimic a real client Node.

The NodeAlias object does a little bit of computation to return a value with its get() method and thanks to required input nodes.

The NodeAlias cannot be use as such without implementing a fget method. This can be done by implementing the fget method on an inerated class or with the nodealias decorator.

NodeAlias is an abstraction layer, it does not do anything complex but allows uniformity among ways to retrieve values.

NodeAlias object can be easely created with the @nodealias() decorator

..note:

:class:`pydevmgr_core.NodeAlias` can accept one or several input node from the unique ``nodes`` argument.
To remove any embiguity NodeAlias1 is iddentical but use only one node as input from the ``node`` argument.

Parameters:

key (str) – Key of the node
(list (nodes) – BaseNode): list of nodes necessary for the alias node. When the node alias is used in a pydevmgr_core.Downloader object, the Downloader will automaticaly fetch those required nodes from server (or other node aliases).
class – BaseNode): list of nodes necessary for the alias node. When the node alias is used in a pydevmgr_core.Downloader object, the Downloader will automaticaly fetch those required nodes from server (or other node aliases).

Example:

Using a dummy node as imput (for illustration purpose).

from pydevmgr_core.nodes import Value
from pydevmgr_core import NodeAlias
position = Value('position', value=10.3)

is_in_position = NodeAlias( nodes=[position])
is_in_position.fget =  lambda pos: abs(pos-4.56)<0.1
is_in_position.get()
# False

Using the nodealias decorator

from pydevmgr_core.nodes import Value
from pydevmgr_core import NodeAlias
position = Value('position', value=10.3)

@nodealias('is_in_position')
def is_in_position(pos):
    return abs(pos-4.56)<0.1

Derive the NodeAlias Class and add target position and precision in configuration

from pydevmgr_core.nodes import Value
from pydevmgr_core import NodeAlias
position = Value('position', value=10.3)


class InPosition(NodeAlias):
    class Config(NodeAlias.Config):
        target_position: float = 0.0
        precision : float = 1.0

    def fget(self, position):
        return abs( position - self.config.target_position) < self.config.precision

is_in_position = InPosition('is_in_position', nodes=[position],  target_position=4.56, precision=0.1)

is_in_position.get()
# False
position.set(4.59)
is_in_position.get()
# True

NodeAlias can accept several nodes as input:

from pydevmgr_core.nodes import Value
from pydevmgr_core import NodeAlias

class InsideCircle(NodeAlias):
    class Config(NodeAlias.Config):
        x: float = 0.0
        y: float = 0.0
        radius: float = 1.0

    def fget(self, x, y):
        return  ( (x-self.config.x)**2 + (y-self.config.y)**2 ) < self.config.radius**2

position_x = Value('position_x', value=2.3)
position_y = Value('position_y', value=1.4)
is_in_target = InsideCircle( 'is_in_target', nodes=[position_x, position_y], x=2.0, y=1.0, radius=0.5 )
is_in_target.get()
# True
